Connector Pipe Screen for Trash and Debris Capture
Prevent stormwater pollution with Connector Pipe Screens that block trash and debris at drain connections.

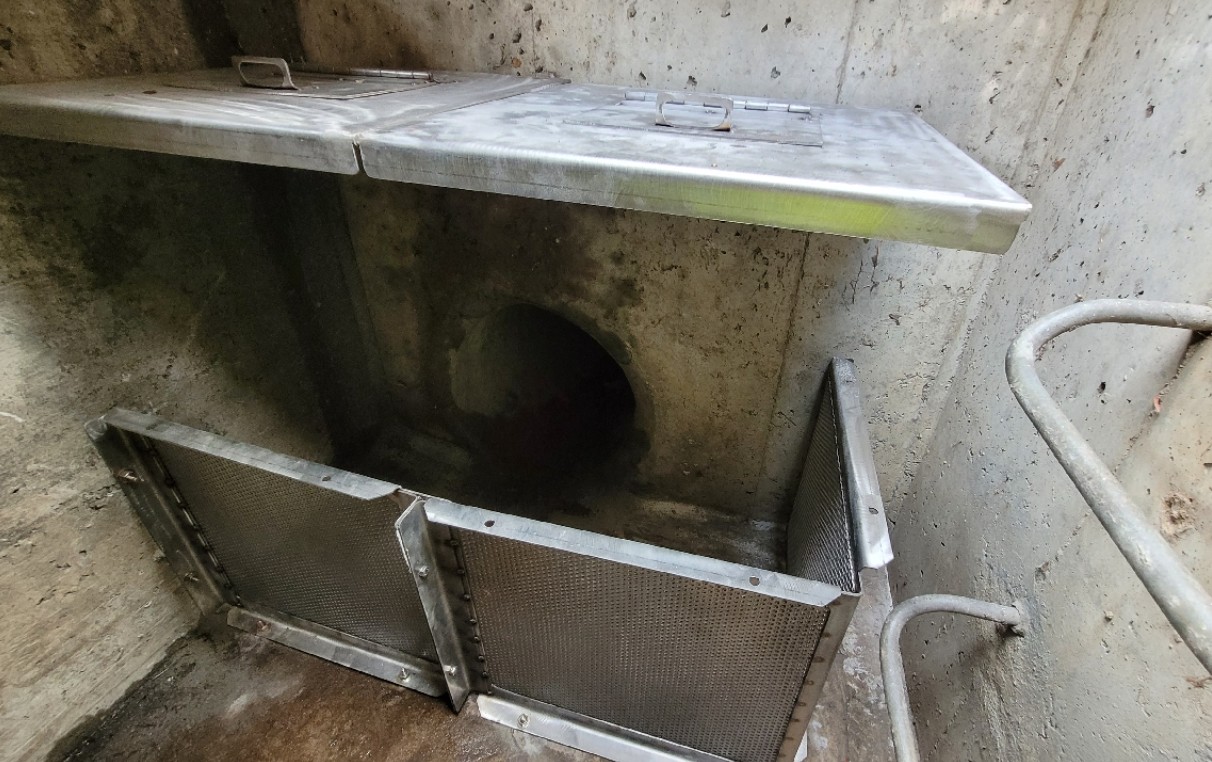

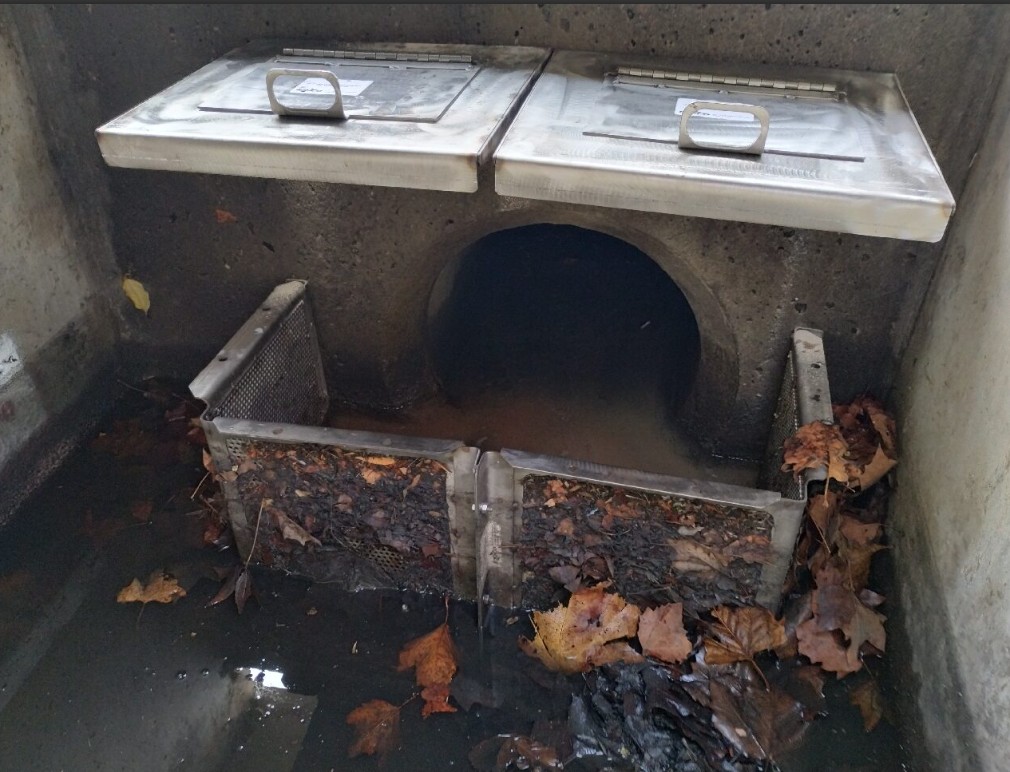

Fabco's Connector Pipe Screen (CPS) is a full-capture device that traps trash and debris inside catch basins, allowing only filtered stormwater to exit. Designed to fit through a standard 22″ manhole, it installs easily in both new and existing systems. The CPS is matched to the flow rate of the connected pipe, reducing the risk of backups and flooding. With a California Water Board–certified option available, CPS provides a reliable, compliant solution for pretreatment in municipal and commercial projects.
Full-Capture Protection
Stormwater systems perform best when pollutants are contained at the source. The Connector Pipe Screen provides an efficient way to keep catch basins functioning at peak performance while minimizing maintenance and reducing flood risk. Its precision design pairs strong flow capacity with effective debris interception, ensuring that detention, infiltration, and water quality systems stay clear and compliant over time. An available California Water Board certified option confirms compliance with some of the nation's most rigorous pretreatment standards. Key advantages include:
- Durable aluminum or stainless-steel construction for corrosion resistance and long-term reliability.
- Customizable sizing for round, square, or irregular catch basins.

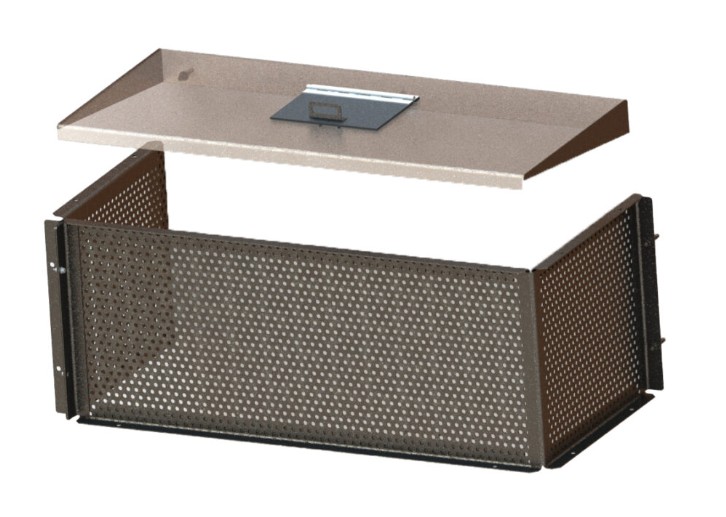

- Simple design with optional top or bottom covers to suit unique site conditions.
- Certified SWRCB-approved option for regulated projects requiring full-capture compliance.
By combining field-tested durability with adaptable configurations, the Connector Pipe Screen simplifies design and installation while strengthening overall system performance.
Performance in Action
Compact and versatile, these devices protect stormwater networks in both municipal and commercial environments where trash, debris, and sediment can quickly clog systems. Their collapsible design fits easily into existing infrastructure, allowing fast installation without structural modification. Common applications include:
- Municipal stormwater systems requiring certified full-capture trash control.
- Commercial sites with heavy debris loads from paved surfaces and rooftops.
- Catch basins or curb inlets that need retrofits without reconstruction.
- Regulated regions such as California where strict trash capture mandates apply.
This versatility allows engineers and owners to enhance water quality protection across diverse projects while minimizing installation effort.
Engineered Results You Can Measure
Reliable performance defines the Connector Pipe Screen. Each unit maintains hydraulic efficiency under heavy flow conditions, preventing blockages and ensuring continuous operation. Robust framing and corrosion-resistant materials withstand years of exposure, while precision perforations provide consistent pollutant removal. Performance features include:
- Perforated screen with fifty-one percent open area and three-sixteenth-inch holes for efficient debris capture.
- Flow-matched design where open area equals or exceeds the outlet pipe capacity.
- Integrated bypass protection for safe operation during peak events.
- Compact, collapsible assembly for curb inlets or twenty-two-inch manholes.
- Configurations available for outlet pipes up to thirty-six inches in diameter.
Together, these features provide measurable results, lower maintenance costs, and help projects maintain long-term compliance with stormwater regulations.
Upstream and Downstream Integration
Strong pretreatment systems function best as part of an integrated network. Positioned within the catch basin, the Connector Pipe Screen captures pollutants before they enter downstream systems while maintaining hydraulic balance and flow efficiency. Typical integration includes:
- Upstream conveyance delivering runoff to the catch basin for immediate screening.
- Filtration within the basin that intercepts trash, sediment, and floatables at the inlet.
- Downstream infiltration, detention, or treatment systems that benefit from cleaner inflow.
- Overflow pathways that manage peak flows safely while protecting downstream assets.
By linking pretreatment, conveyance, and treatment in one coordinated system, the Connector Pipe Screen preserves long-term functionality across every stage of stormwater management.
